APPLICATION
- FUEL TANKS "WIRED" MONITORING |
"Wired"
stationary fuel tanks monitoring:
The simple way for
monitoring fuel level (fuel volume) in fuel tanks that
located near office (monitoring room).
In general system allows:
-
real time monitor fuel
level (fuel volume) in fuel tanks;
-
store fuel history for
each fuel tank;
-
visualisation fuel
level in fuel tank;
-
generate fuel graphs,
reports for fuel tanks.
/wiredmonitoring-general.jpg) |
In fuel
tank installed GuardMagic DLLE or GuardMagic
DLLS fuel level sensors.
Fuel level
sensors connected to monitored PC by connection
cable (sensor serial connection).
Fuel level
sensors send to PC by connection cable
information about fuel level in fuel tank.
Monitoring
software receive this information and store it
in data base.
Based on
stored information, monitoring software
calculate data and generate necessary graphs,
reports etc.
|
1) EASY VERSION (support up to THREE
fuel tanks):
|
/easyversion.jpg) |
-
PC (Personal Computer with
USB interface);
-
"EasyTank" software (FREE,
support up to THREE fuel
tanks).
-
EIA-485/USB interface
adapter (GuardMagic SCA or
similar);
-
Connection cable (connect
fuel level sensors to
interface adapter);
-
Fuel level sensor GuardMagic
DLLS+ barrier GuardMagic
JBB01 (or GuardMagic DLLS
fuel level sensors). Up to
THREE fuel level sensors);
|
|
|
2) STANDARD VERSION (support up to 14
fuel tanks):
|
/standardversion.jpg) |
-
PC (Personal Computer with
USB interface);
-
"TankMonitor" software
(support up to FOURTEEN fuel
tanks).
-
EIA-485/USB interface
adapter (GuardMagic SCA or
similar);
-
Connection cable (connect
fuel level sensors to
interface adapter);
-
Fuel level sensor GuardMagic
DLLS+ barrier GuardMagic
JBB01 (or GuardMagic DLLS
fuel level sensors). Up to
FOURTEEN fuel level
sensors);
|
|
|
3) ADVANCED VERSION (support up to 14
fuel tanks):
|

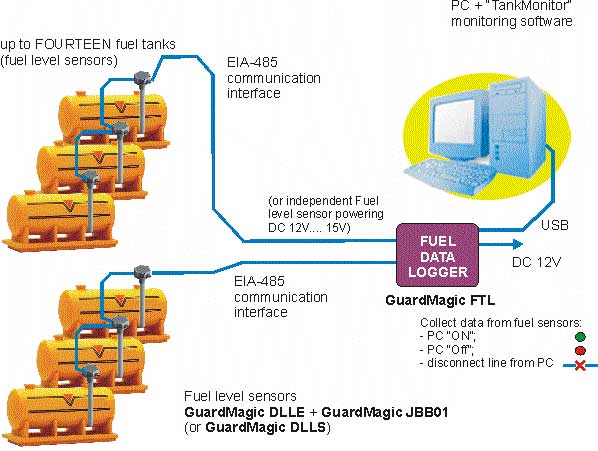

/advancedversion.jpg) |
-
PC (Personal Computer with
USB interface);
-
"TankMonitor" software
(support up to FOURTEENfuel
tanks).
-
TWO EIA communication line;
-
Fuel tank data logger (GuardMagic
FTL);
-
TWO EIA-485 communication
interface
-
Connection cable (connect
sensors with "Fuel Datat
Logger");
-
Fuel level sensor GuardMagic
DLLS+ barrier GuardMagic
JBB01 (or GuardMagic DLLS
fuel level sensors). Up to
FOURTEEN fuel level
sensors);
Benefits:
-
support up to 14 fuel level
sensors;
-
TWO EIA-485 communication line;
-
GuardMagic FTL collect data from
fuel level sensor, stored data
in internal memory and sent data
to PC, when PC is ready;
-
Monitor tanks: "PC ON", "PC
Off", disconnect communication
line from PC.
|
|
Main notes:
-
as usual used
GuardMagic DLLE fuel level sensor with
GuardMagic JBB01 safety barrier;
-
If in fuel tank
are not explosive fuel (diesel fuel etc), can be
use GuardMagic DLLS fuel level sensor
(without barrier).
|
|
|
|
|
|
|
| |
|
